| Application | Water well / Solar Foundation / Pilling / Mining / SPT |
| Drilling method | DTH Air Drilling / Rotary Drilling |
| Hole diameter range | 115-250 MM (4 1/2" - 10") |
| Maximum depth | 650 FT (200 M) |
| Rotary head | Single & Two Motor Type / RPM : 0-150 / Torque-4500 NM |
| Rod handling | 1.5-3 M (5-10 FT) |
| Feed cylinder | 140 MM Dia Hydraulic Cylinder With Hard Chrome |
| Pull up force | 7000 Kgf |
| Pull down force | 5000 Kgf |
| Suitable air compressor | 575 CFM - 225 PSI / 900 CFM - 200 PSI / 1100 CFM - 300 PSI |

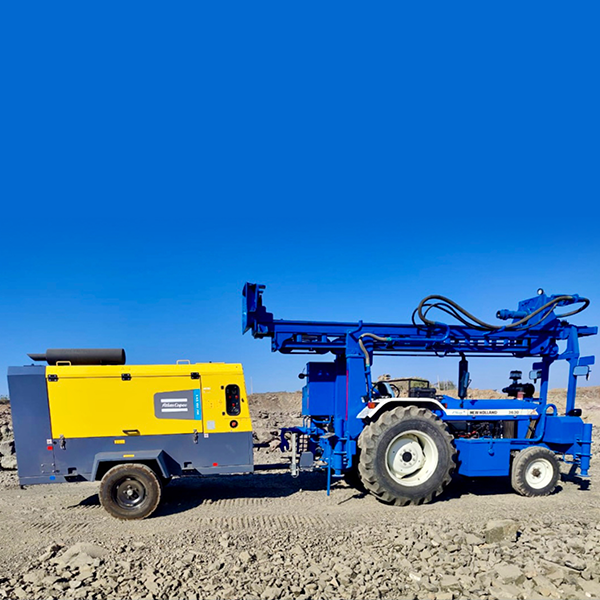

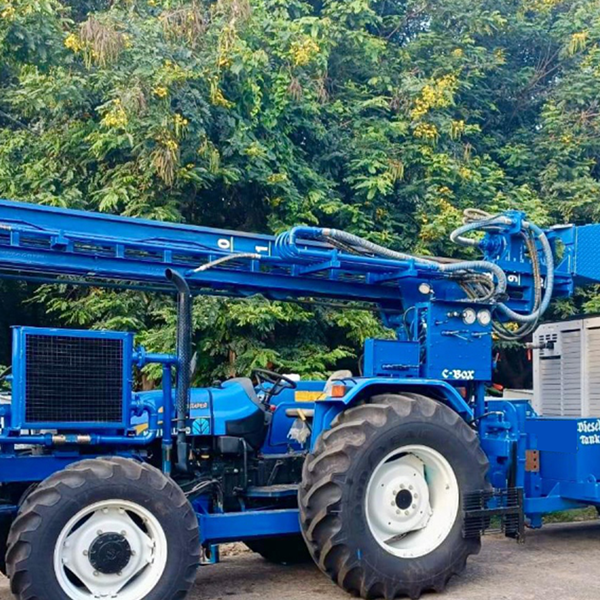

| Mounting option | Tractor 35/90 HP (4x2,4x4) |
